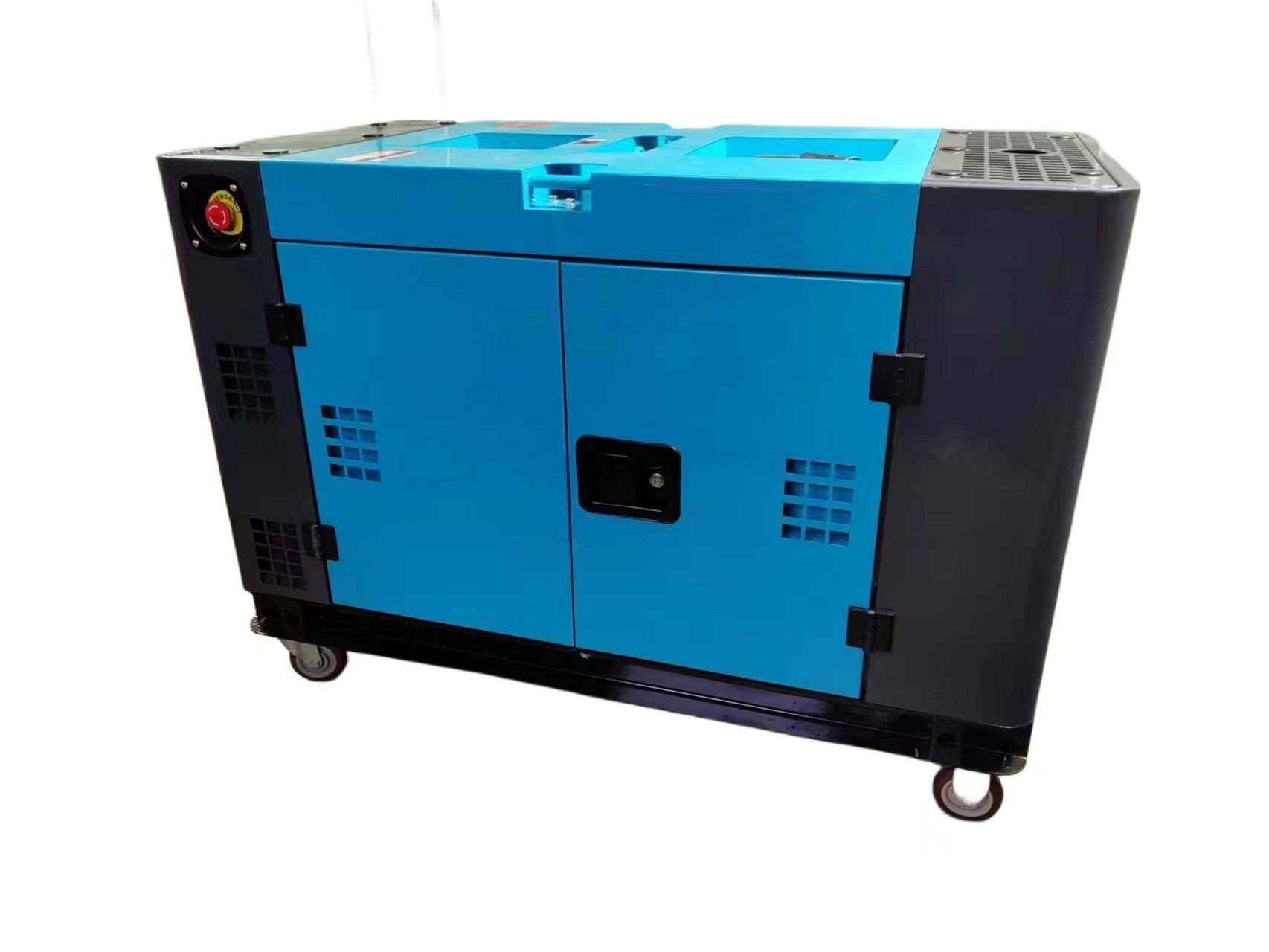

400a diesel welding generaror,it's not only a welder,but also a generator,when welding,it can output 400a,when not welding,it's a 15kw generator.
| 500A Diesel Welding Generator | |
| Model | RDW400AC |
| Frequency(Hz) | 50 |
| Rated Power(KW) | 14 |
| Max Power(KW) | 15 |
| Voltage(V) | 380 |
| Welding Voltage(V) | 25V-35V |
| Welding Current(A) | 20-400 |
| Capacity of Fuel Tank(L) | 25 |
| Running time with Load(hour ) | 8 |
| Noise with Load @7m(dBA) | 85 |
| Battery (AH) | 60 |
| Engine Parameters | |
| Engine Type | Diesel |
| Engine Model | 2V95 |
| Output Power( hp ) | 30 |
| Start Mode | Electric |
| Displacement(L) | 1.523 |
| Oil Tank Capacity(L) | 3.3 |
| Alternator Parameters | |
| Alternator Model | 400AC |
| Rated Power(kVA) | 18 |
| Power Factor | 0.8 |
| Voltage Regulation | Brush /AVR |
| Packing Details | |
| Net Weight(Kg) | 360 |
| Gross Weight(Kg) | 385 |
| Machine Size(L*W*H)(mm) | 1400*720*800 |
